BY-M1V1

2.4GHz Dual-Channel Wireless Microphone System

₹7,340.00
- Ultracompact & portable
- Up to 60m wireless operation range
- Easy-to-use clip-on TX transmitter/ RX receiver
- Compatible with smartphones, tablets, cameras, camcorders, etc
- Built-in mic for high-quality sound
- ldeal for interviews, podcasts & live streaming
- Selectable mono/stereo output
View full details
Overview
Parameter
Download
View All
Put it all away
BY-M1V-TX
Transmission Type
2.4GHz ISM
Modulation
GFSK
Operating Range
>60m (without obstacles)
RF Output Power
<10mW
Audio Input
3.5mm Jack or Built-in Omnidirectional Mic
Frequency Response
50Hz-20kHz
Signal-to-Noise Ratio
>75dB
Maximum SPL
Built-in Microphone: 120dB SPL
Sensitivity
Built-in Microphone:-39dB±2dB(0dB=1V/Pa@1kHz)
Noise Cancellation
Yes
Power Requirement
Built-in Li-ion Battery or USB-C DC 5V
Antenna
PIFA Antenna
Battery Life
Approx.6 hours
Weight
18g
Dimensions
40.2×39.4×18.6mm
Operating Temperature
0℃ to 50℃
Storage Temperature
-20℃ to 55℃
BY-M1V-RX
Transmission Type
2.4GHz ISM
Modulation
GFSK
Operating Range
>60m (without obstacles)
RF Output Power
<10mw
Audio Output
3.5 mm Headphone Output Jack / 3.5 mm TRS Line Output Jack
Power Requirement
Built-in Li-ion Battery or USB-C DC 5V
Antenna
PIFA Antenna
Built-in Battery Life
Approx. 6 hours
Weight
18g
Dimensions
40.2×39.8×18.6mm
Operating Temperature
0℃ to 50℃
Storage Temperature
-20℃ to 55℃

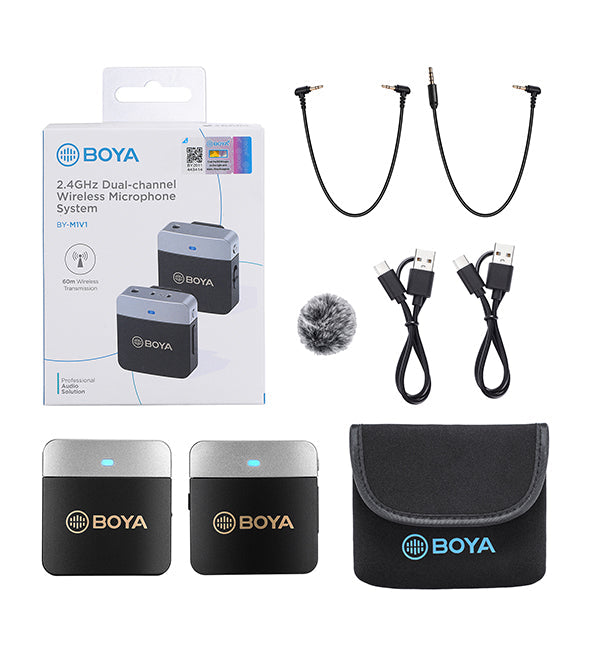

Packing List
BY-M1V-TX Transmitter×1
BY-M1V-RX Receiver×1
3.5mm TRS to TRS Output Cable for Cameras×1
3.5mm TRS to TRRS Output Cable for Smartphones×1
USB-C Charging Cable×2
Fur Windshield×1
View All
Put it all away

BY-M1V1 2.4GHz Dual-Channel Wireless Microphone System
