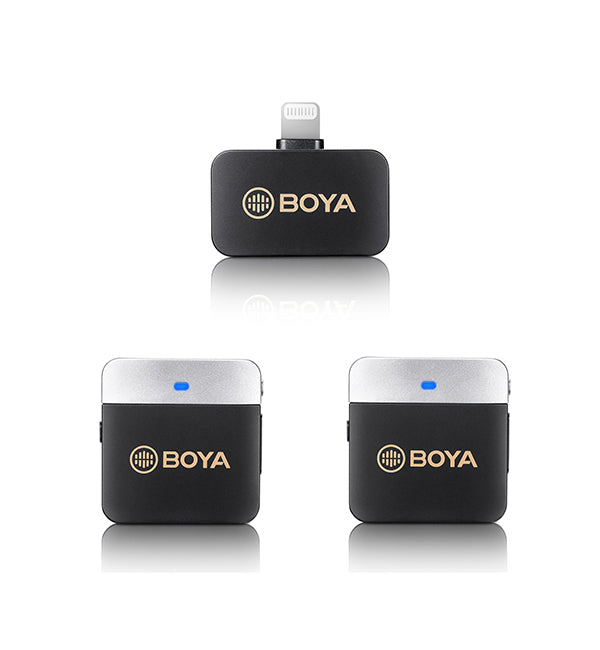

BY-M1V6

2.4GHz Dual-Channel Wireless Microphone System

₹9,780.00
- Ultracompact & portable
- Up to 60m wireless operation range
- Easy-to-use clip-on TX transmitter/ RX receiver
Compatible with smartphones, tablets, cameras, camcorders, etc
- Built-in mic for high-quality sound
ldeal for 2-person interviews, podcasts & live streaming
Selectable mono/stereo output

View full details
Overview
Parameter
Download
View All
Put it all away
BY-M1V-TX
Transmission Type
2.4GHz ISM
Modulation
GFSK
Operating Range
>60m (without obstacles)
RF Output Power
<10mW
Audio Input
3.5mm Jack or Built-in Omnidirectional Mic
Frequency Response
50Hz-20kHz
Signal-to-Noise Ratio
>75dB
Maximum SPL
Built-in Microphone: 120dB SPL
Sensitivity
Built-in Microphone:-39dB±2dB (0dB=1V/Pa@1kHz)
Noise Cancellation
Yes
Power Requirement
Built-in Li-ion Battery or USB-C DC 5V
Antenna
PIFA Antenna
Battery Life
Approx.6 hours
Weight
18g
Dimensions
40.2×39.4×18.6mm
Operating Temperature
0℃ to 50℃
Storage Temperature
-20℃ to 55℃
BY-M1V-RXD
Transmission Type
2.4GHz ISM
Modulation
GFSK
Operating Range
>60m (without obstacles)
Audio Output
MFi Certified Lightning Connector
Power Requirement
Supplied by iOS Devices
Antenna
PIFA Antenna
Weight
10g
Dimensions
23.5×38×11.9mm
Operating Temperature
0℃ to 50℃
Storage Temperature
-20℃ to 55℃

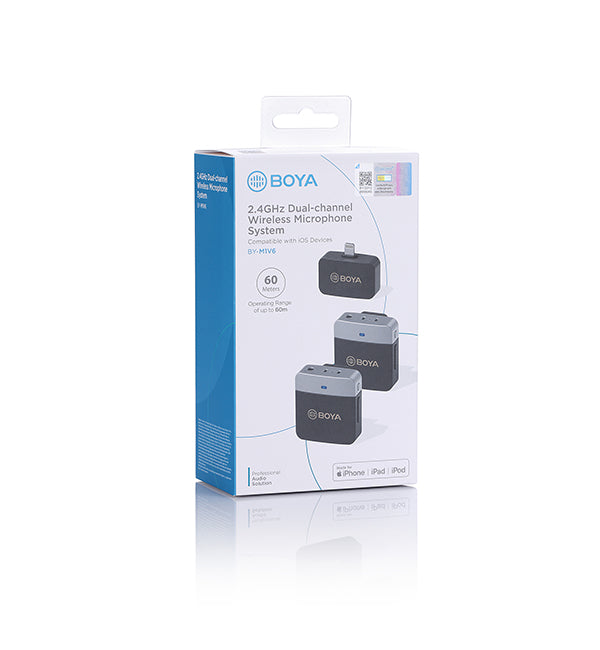

Packing List
BY-M1V-TX Transmitter×2
BY-M1V-RXD Receiver×1
USB-C Charging Cable×2
Fur Windshield×2
Pairing Pin×1
View All
Put it all away

BY-M1V6 2.4GHz Dual-Channel Wireless Microphone System

Download
