BY-W4 TX
| |
---|---|
Transmission Type | 2.4GHz
|
Modulation
|
GFSK
|
Polar Pattern | Omnidirectional |
Operating Range
|
Up to 30m (without obstacles)
|
RF Output Power
|
<10mW
|
Frequency Response |
50Hz-16kHz
|
Signal-to-Noise Ratio
|
>78dB
|
Sensitivity
|
-42 dB
|
Built-in Li-ion Battery Specifications
|
3.7V/ 110mAhCharging PortCharging Port |
Charging Port
|
USB-C
|
Charging Time
|
Approx. 2 hours
|
Battery Life
|
Approx.7 hours
|
Weight | Approx.12.5g
|
Dimensions
|
17.7x59x10mm
|
BY-W4 TX
| |
---|---|
Transmission Type | 2.4GHz
|
Modulation
|
GFSK
|
Operating Range
|
Up to 30m (without obstacles)
|
RF Output Power
|
<10mW
|
Audio Output |
3.5 mm TRRS Output Jack |
Built-in Li-ion Battery Specifications
|
3.7V / 200mAh |
Charging Port
|
USB-C
|
Charging Time
|
Approx. 2 hours
|
Battery Life
|
Approx.7 hours
|
Weight | Approx.18g
|
Dimensions
|
20.2x65×12.8mm
|

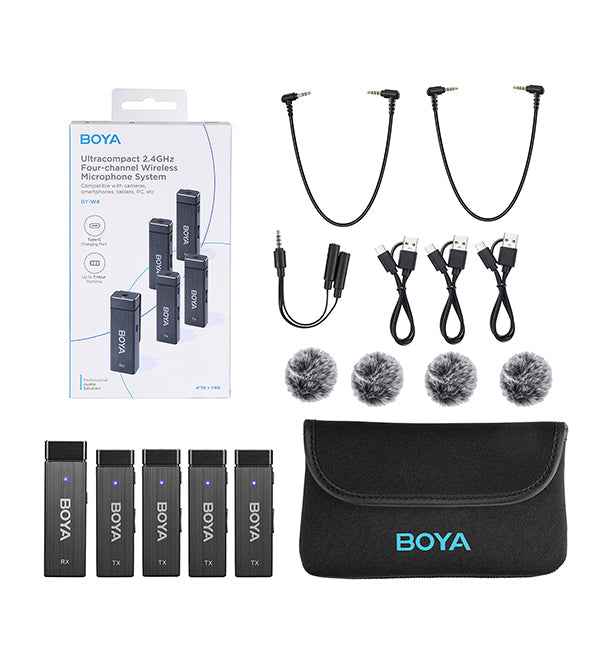

Packing List
|
---|
BY-W4 TX Transmitter×4
|
BY-W4 RX Receiver×1
|
3.5mm TRRS to TRS Output Cable for Cameras×1
|
3.5mm TRRS to TRRS Output Cable for Smartphones×1
|
3.5mm TRRS Male to Dual TRRS Female Cable×1 |
USB-C Charging Cable×3 |
Fur Windshield×4 |
Carrying Pouch×1 |
