BY-XM6 S4

2.4GHz Dual-Channel Wireless Microphone System

₹20,420.00

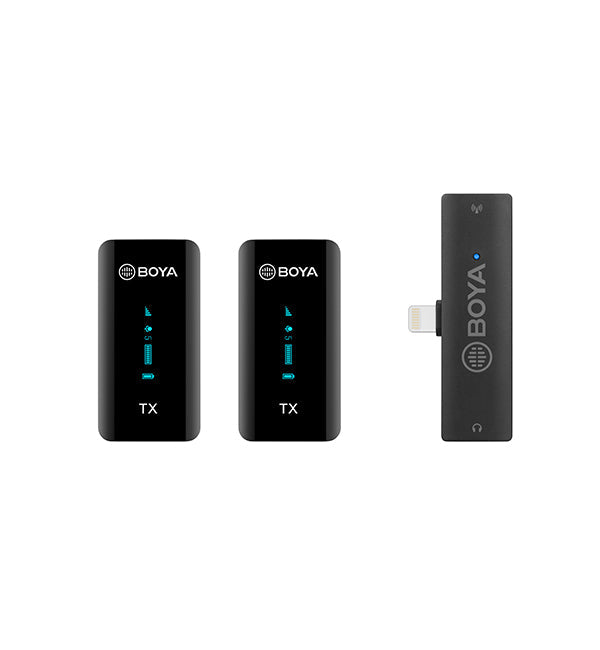

- Dual-channel wireless microphone system for 2-person recording that delivers high-quality sound
- Advanced 2.4GHz signal transmission technology delivers stable signals with a range of up to 100m without obstacles
- No extra APP or cables needed, the microphone can be connected automatically when powered on and plugged into the device
- Transmitters support up to 7h working time and build with an easy-to-read, vivid, and informative OLED display
- Receiver features Mono/Stereo output setting, headphone output and fits on the lightning port of iPhones and iPads
- Included with omnidirectional lavalier mics and other complete accessories, it’s a cost-effective choice
View full details
Overview
Parameter
Download
View All
Put it all away

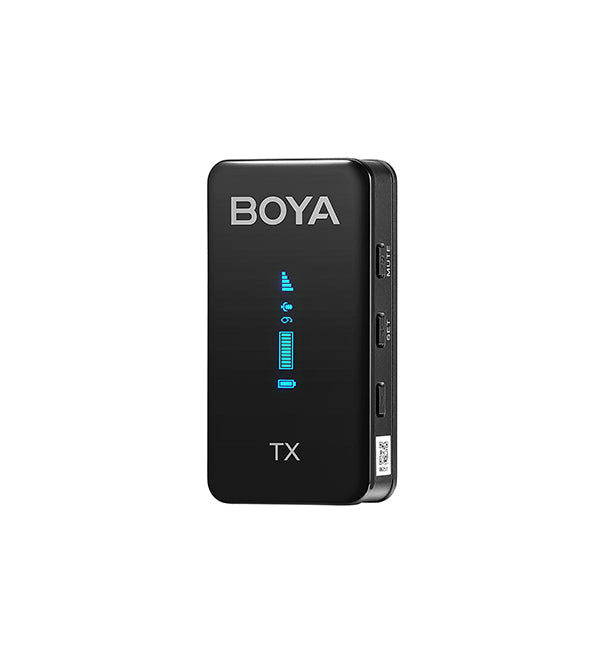

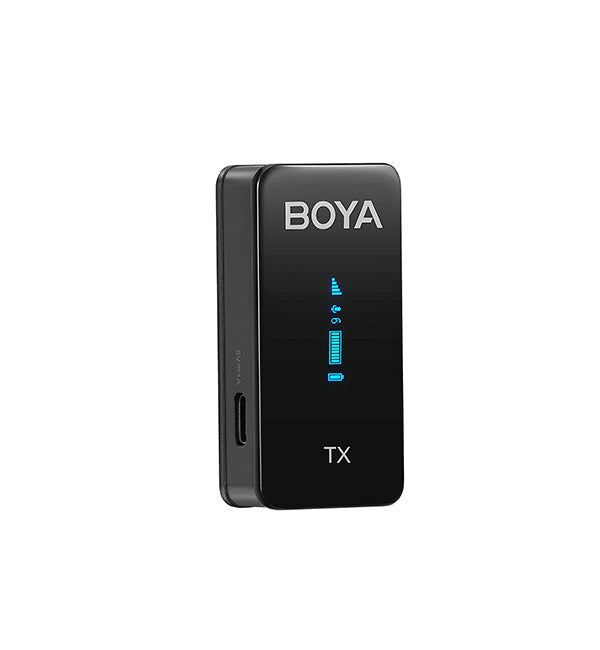

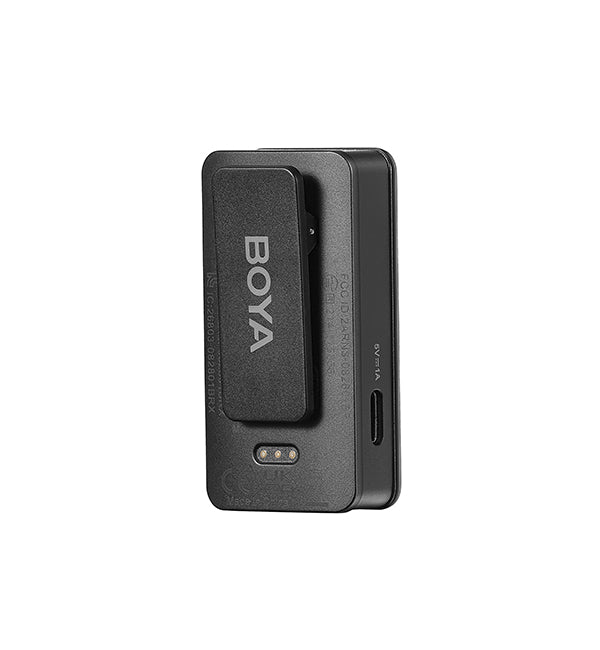

Transmitter
Transmission Type
2.4GHz Digital Frequency
Modulation
GFSK
Operating Range
Up to 328ft (100m) (without obstacle)
RF Output Power
<10mW
Polar Pattern
Omnidirectional
Frequency Response
35Hz-18KHz
Maximum SPL
Built-in Microphone: 120dB SPL
Lavalier Microphone
110dB SPL
Sensitivity
Built-in Microphone:-39dB
Lavalier Microphone
-39dB
SNR
>84dB
Power Requirements
Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
Built-in Battery Life
Approx. 7 hours
Antenna
PIFA Antenna
Audio lnputs
3.5mm TRS MIC/LINE IN Jack or Built-in Microphone
Weight
Approx.32g(1.13oz)
Dimensions
62.1×31.6x16.5mm
Operating Temperature
-10℃ to 50℃
Storage Temperature
-20℃ to +55℃
Receiver
Transmission Type
2.4GHz ISM Frequency
Modulation
GFSK
Operating Range
Up to 328ft (100m)(without obstacle)
RF Output Power
<10mW
Audio Output Connector
3.5mm Headphone Jack / Lightning Connector
Power Requirements
Supplied by ios Devices
Antenna
PIFA
Weight
14.5g (0.51oz)
Dimensions
75.6x23.15x12mm

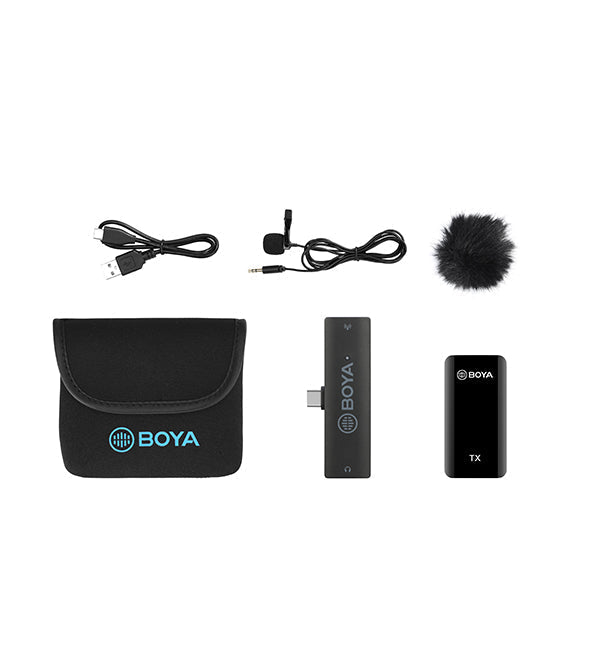

Packing List
BY-XM6 TX Transmitter×2
BY-XM6 RXD Receiver×1
USB-C Charging Cable×2
Lavalier Microphone×2
Mic Clip for Lavalier Microphone×2
Foam Windscreen for Lavalier Microphone×2
Fur Windshield for Built-in Microphone×2
