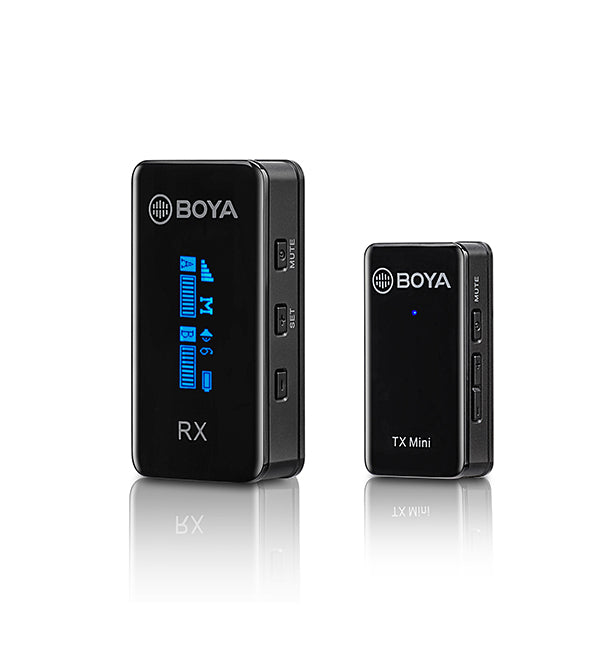

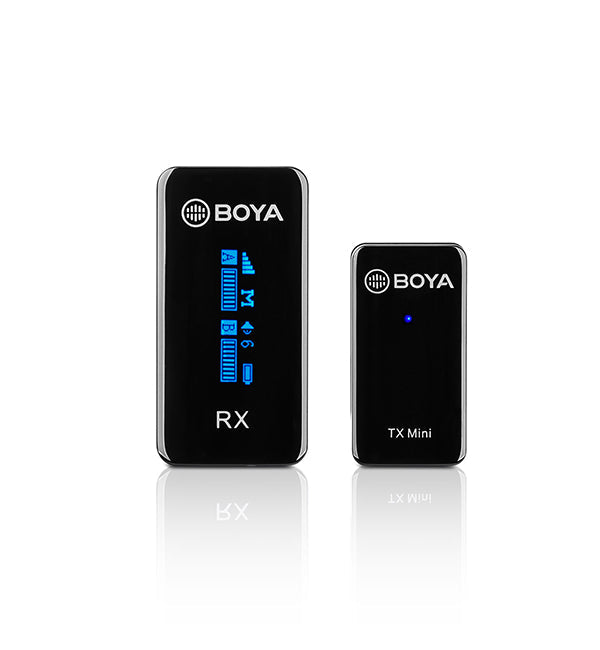

BY-XM6-S1 Mini
Ultracompact 2.4GHz Dual-Channel Wireless Microphone System
₹15,880.00
- Ultra-compact design
- Global free frequency 2.4GHz ISM wireless technology
- Broadcast-quality sound
- Wide compatibility
- OLED screen on receiver
- Real time monitoring available
- Flexible gain setting
View full details
- Global free frequency 2.4GHz ISM wireless technology
- Broadcast-quality sound
- Wide compatibility
- OLED screen on receiver
- Real time monitoring available
- Flexible gain setting
Transmitter
Transmission Type
2.4GHz lSM Frequency
Modulation
GFSK
Operating Range
Up to 328ft (100m) (without obstacle)
RF Output Power
<10mw
Polar Pattern
Omnidirectional
Frequency Response
35Hz-18KHz
Maximum SPL
120dB SPL
Sensitivity
-39dB
SNR
>77 dB
Power Requirements
Built-in Li-ion Battery or USB-C DC 5v or Charging Contact
Built-in Battery Life
Approx.4.5 hours
Antenna
PIFA Antenna
Audio lnputs
Built-in Microphone
Weight
Approx.14.5g(0.5oz)
Dimensions
46x23.92x15mm
Operating Temperature
-10℃ to 50℃
Storage Temperature
-20℃ to +55℃
Receiver
Transmission Type
2.4GHz Digital Frequency
Modulation
GFSK
Operating Range
Up to 328ft (100m)(without obstacle)
Audio Output Connector
3.5mm Headphone Jack / 3.5mm TRS Output Jack
Audio Output Level
-60 dBV to -20dBV
Power Requirements
Built-in Li-ion Battery or USB-C DC 5v or Charging Contact
Built-in Battery Life
Approx.7 hours
Antenna
PIFA Antenna
Weight
Approx.32g(1.13oz)
Dimensions
62.1×31.6×16.5mm
Operating Temperature
-10℃ to 50℃
Storage Temperature
-20℃ to +55℃

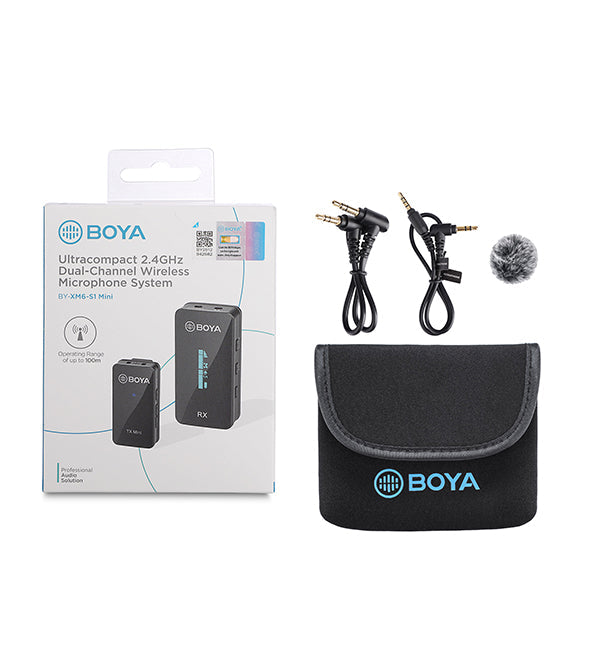

Packing List
BY-XM6 TX Mini Transmitter×1
BY-XM6 RX Receiver×1
USB-C Charging Cable×2
Fur Windshield for Built-in Microphone×1
3.5mm TRS to TRS Output Cable for Camera×1
3.5mm TRS to TRRS Output Cable for Smartphones×1
