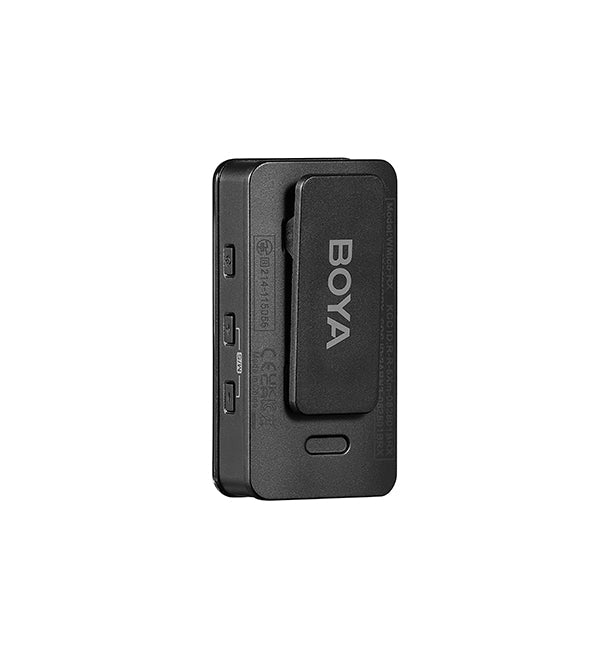

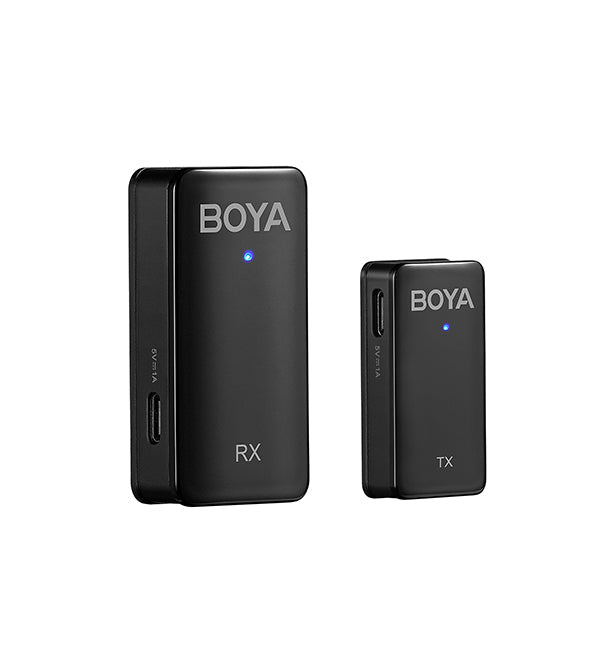

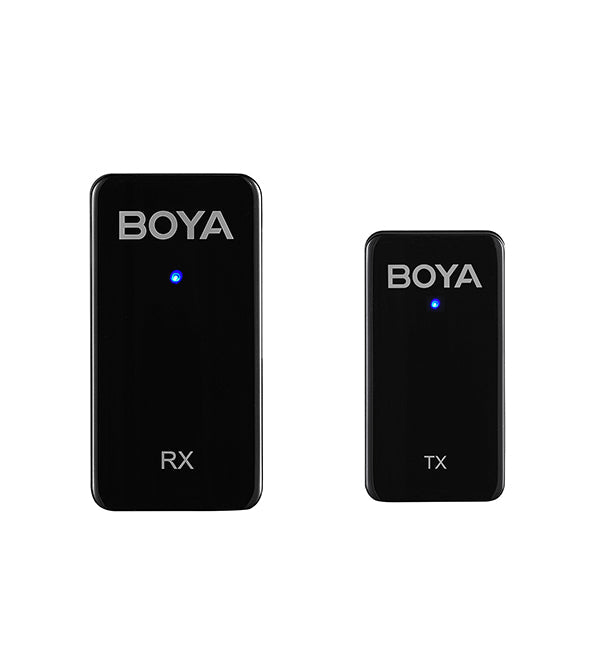

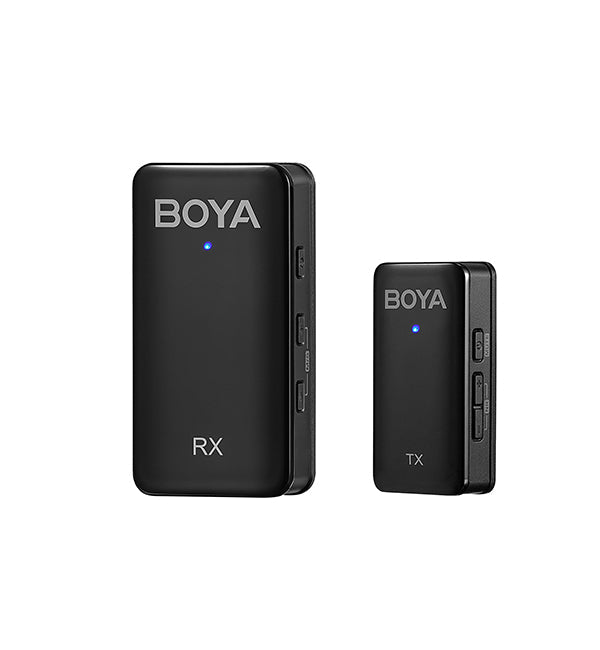

BY-WMic5-M1
Ultracompact 2.4GHz Dual-Channel Wireless Microphone System
₹15,620.00
- Ultracompact & portable
- Dual-channel recording
- Plug&play
- Universal compatibility
- Noise cancellation
- Real-time monitoring
View full details
- Dual-channel recording
- Plug&play
- Universal compatibility
- Noise cancellation
- Real-time monitoring
Transmitter
Transmission Type
2.4GHz lSM Frequency
Modulation
GFSK
Operating Range
Up to 196 ft (60 m)(without obstacle)
RF Output Power
<10mW
Polar Pattern
Omnidirectional
Frequency Response
20Hz-20KHz
Maximum SPL
120dB SPL
Sensitivity
-39±2dB
SNR
>78dB
Power Requirements
Built-in Li-ion Battery or USB-C DC 5v
Battery Voltage / Capacity
3.7V/ 180mAh
Built-in Battery Life
Approx.10 hours
Antenna
PIFA
Audio Input
Built-in Microphone
Weight
Approx.14.5 g(0.5 oz)
Dimensions
45.9x23.9x15 mm
Operating Temperature
-10℃ to 50℃
Storage Temperature
-20℃ to +60℃
Receiver
Transmission Type
2.4GHz ISM Frequency
Modulation
GFSK
Operating Range
up to 196 ft (60 m) (without obstacle)
RF Output Power
<10mw
Power Requirements
Built-in Li-ion Battery or USB-C DC 5v
Battery Voltage / Capacity
3.7V/ 400mAh
Built-in Battery Life
Approx. 20 hours
Antenna
PIFA
Audio Output
3.5 mm Headphone Jack; 3.5 mm TRS Output Jack;
Weight
Approx.32 g (1.1 oz)
Dimensions
62.1×31.6x16.5 mm
Operating Temperature
-10℃ to 50℃
Storage Temperature
-20℃ to +60℃

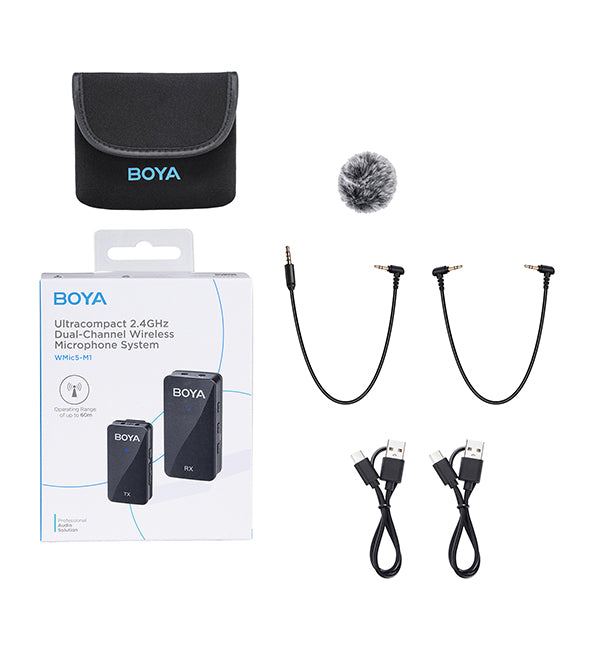

Packing List
WMic5-TX Transmitter ×1
WMic5-RX Receiver ×1
USB-C Charging Cable ×2
Fur Windshield for Built-in Microphone ×1
3.5 mm TRS to TRS Output Cable for Cameras ×1
3.5 mm TRS to TRRS Output Cable for Smartphones ×1
