Transmitter
Transmission Type
2.4GHzlSM Frequency
Modulation
GFSK
Operating Range
Up to 196 ft (60 m)(without obstacle)
RF Output Power
<10mW
Polar Pattern
Omnidirectional
Frequency Response
20Hz-20KHz
Maximum SPL
120dB SPL
Sensitivity
-39±2dB
SNR
>78dB
Power Requirements
Built-in Li-ion Battery or USB-C DC 5v
Battery Voltage / Capacity
3.7V/ 180mAh
Built-in Battery Life
Approx.10 hours
Antenna
PIFA
Audio Input
Built-in Microphone
Weight
Approx.14.5 g(0.5 oz)
Dimensions
45.9x23.9x15 mm
Operating Temperature
-10℃ to 50℃
Storage Temperature
-20℃ to +60℃

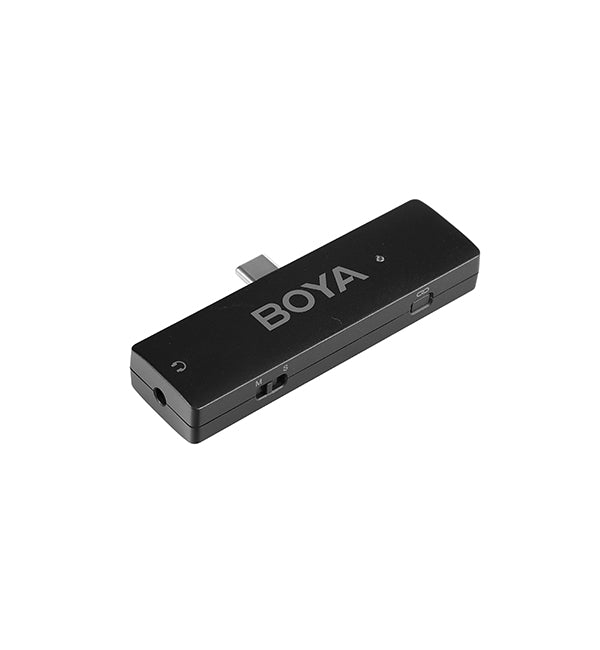

Receiver
Transmission Type
2.4GHz ISM Frequency
Modulation
GFSK
Operating Range
up to 196 ft (60 m) (without obstacle)
RF Output Power
<10mw
Audio Output
3.5mm Headphone Jack; USB-C Connector
Power Requirements
Supplied by USB-C Devices
Antenna
PIFA
Dimensions
75.6x23.2x12 mm
Operating Temperature
-10℃ to 50℃
Storage Temperature
-20℃ to +60℃

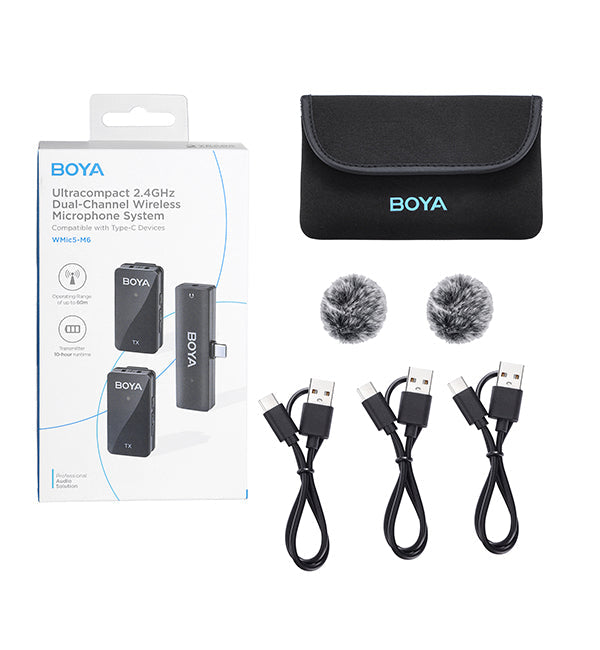

Packing List
WMic5-TX Transmitter ×2
WMic5-RXU Receiver ×1
USB-C Charging Cable ×2
Fur Windshield for Built-in Microphone×2
Put it all away

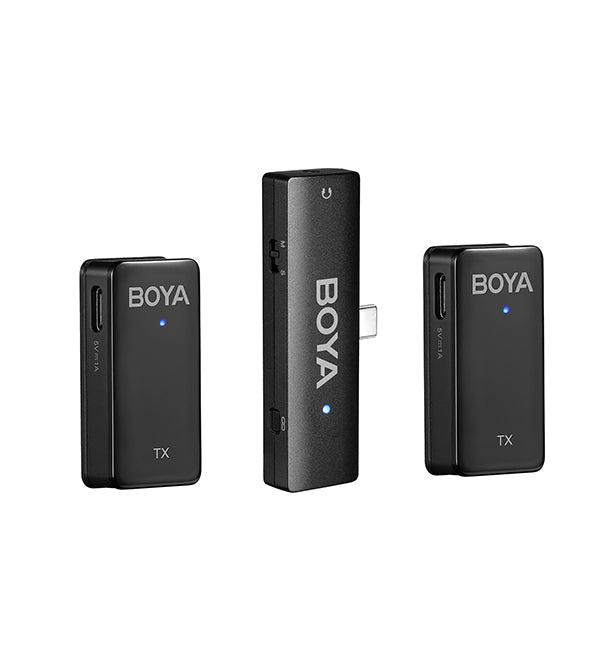

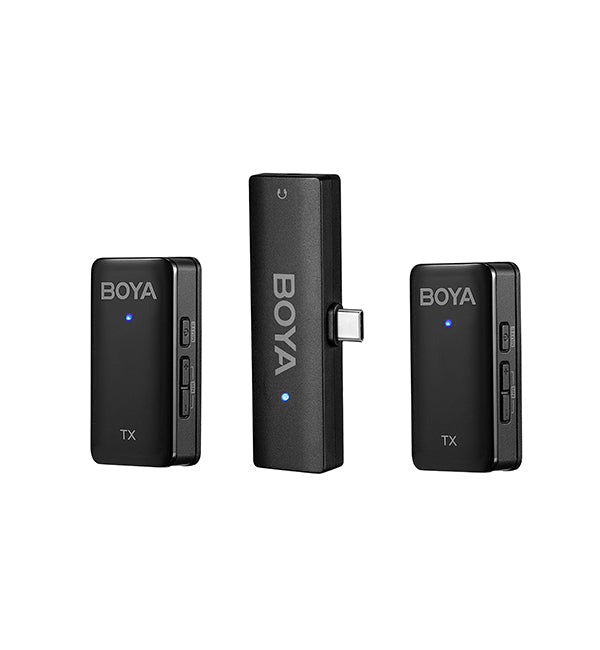

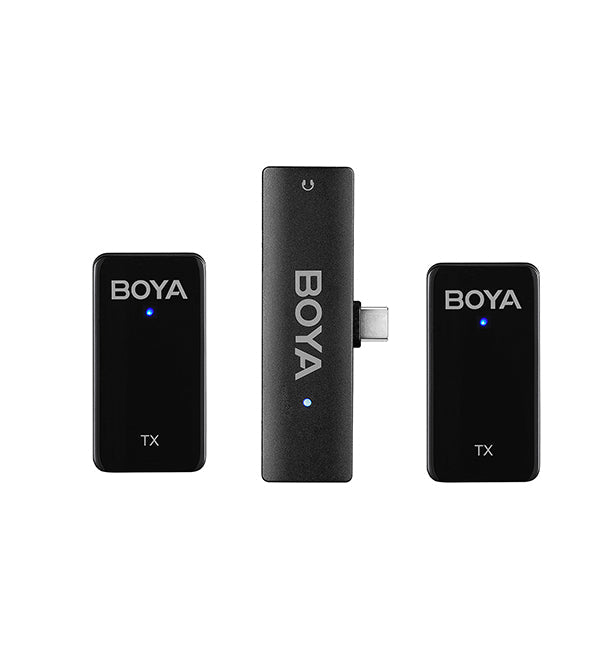

BY-WMic5-M6 Ultracompact 2.4GHz Dual-Channel Wireless Microphone System
