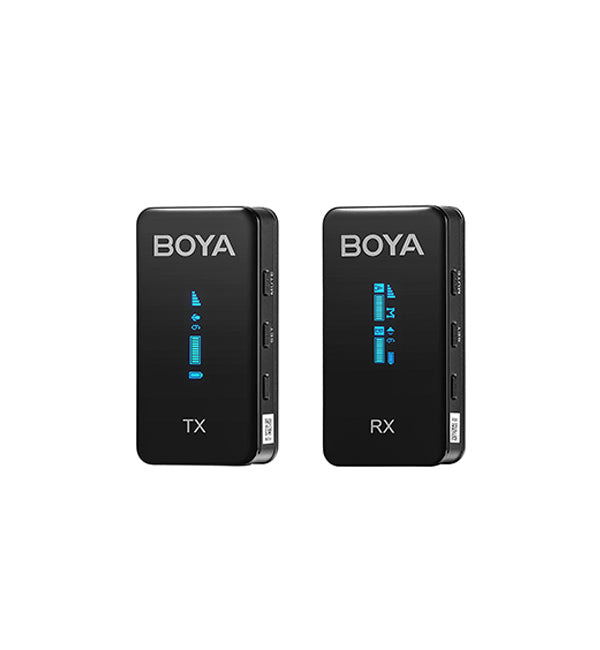

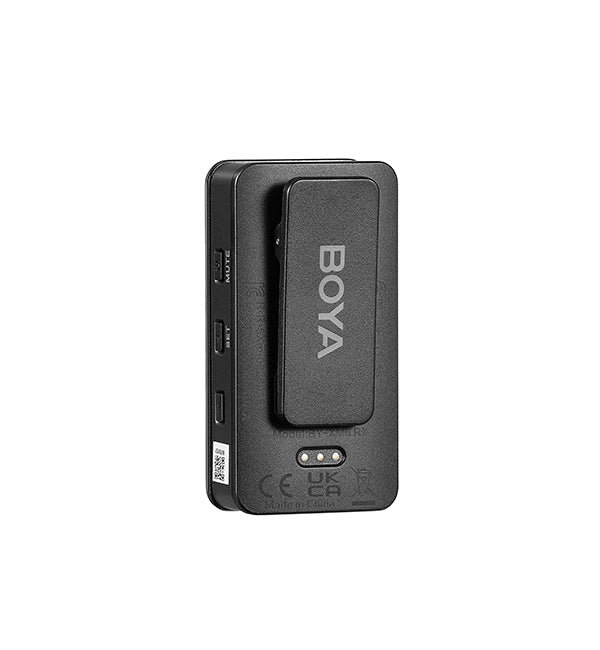

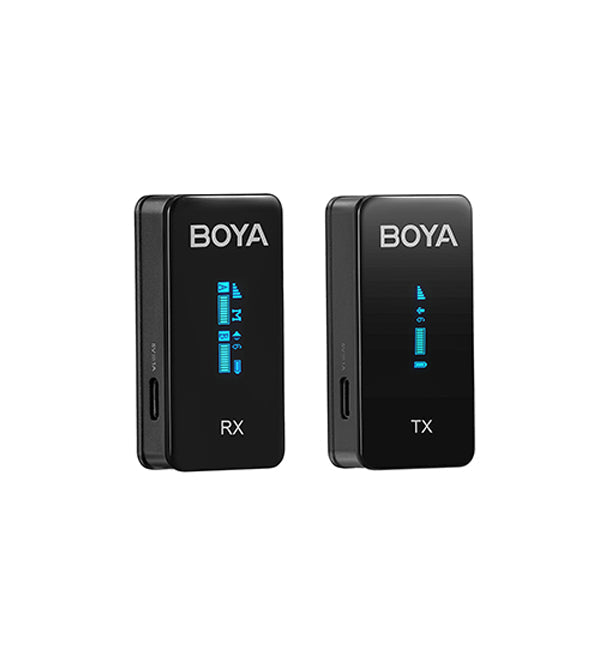

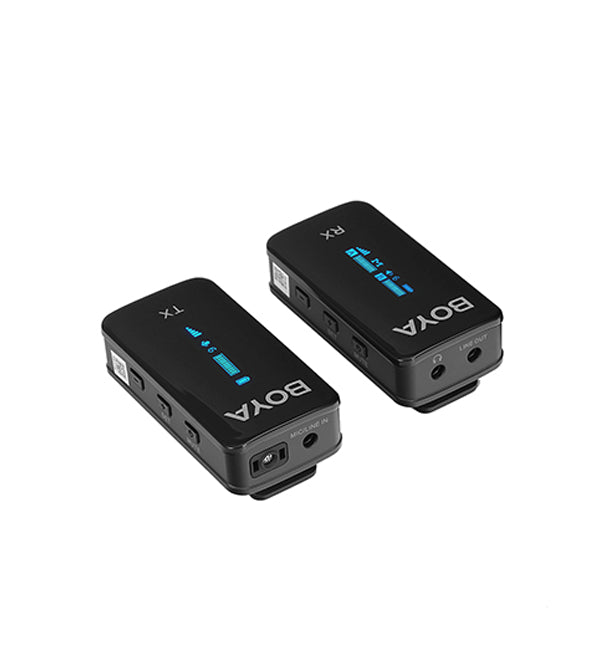

BY-XM6 S1
2.4GHz Ultra-compact Wireless Microphone System
₹14,500.00
₹11,052.00
- Ideal for one-person vlog, YouTube video, live streaming, interview, recording, etc.
- Compatible with DSLR, mirrorless camera, smartphone, and compute
- 2.4GHz wireless signal transmission technology.
- Hi-Fi and low-noise audio processing and delivering system.
- Built with easy-to-use, vivid, and informative OLED display.
- Built-in omnidirectional microphone and a lavalier microphone on transmitter
- Headphone output jack on receiver for real-time monitoring.
- Stereo and mono outputs are available and switchable on receiver.
- Built-in Li-ion batteries for 7h use on transmitter
View full details
- Compatible with DSLR, mirrorless camera, smartphone, and compute
- 2.4GHz wireless signal transmission technology.
- Hi-Fi and low-noise audio processing and delivering system.
- Built with easy-to-use, vivid, and informative OLED display.
- Built-in omnidirectional microphone and a lavalier microphone on transmitter
- Headphone output jack on receiver for real-time monitoring.
- Stereo and mono outputs are available and switchable on receiver.
- Built-in Li-ion batteries for 7h use on transmitter
Transmitter
Transmission Type
2.4GHz Digital Frequency
Modulation
GFSK
Operating Range (without obstacle)
Up to 328ft (100m)
RF Output Power
＜10mW
Polar Pattern
Omnidirectional
Frequency Response
50Hz-18KHz
Maximum SPL
Built-in Microphone:120dB SPL / Lavalier Microphone:110dB SPL
Sensitivity
Built-in Microphone:-39dB / Lavalier Microphone:-39dB
SNR
> 84dB
Power Requirements
Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
Built-in Battery Life
Approx. 7 hours
Antenna
PIFA Antenna
Audio Inputs
3.5mm TRS MIC/LINE IN Jack or Built-in Microphone
Weight
Approx. 32g(1.13oz)
Dimensions
62.1×31.6×16.5mm
Operating Temperature
–10℃ to 50℃
Storage Temperature
–20℃ to +55℃
Receiver
Transmission Type
2.4GHz Digital Frequency
Modulation
GFSK
Operating Range (without obstacle)
Up to 328ft (100m)
Audio Output Connector
3.5mm Headphone Jack / 3.5mm TRS Output Jack
Audio Output Level
–60 dBV to -20dBV
Power Requirements
Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
Built-in Battery Life
Approx. 6.5 hours
Antenna
PIFA Antenna
Weight
Approx. 32g(1.13oz)
Dimensions
62.1×31.6×16.5mm
Operating Temperature
–10℃ to 50℃
Storage Temperature
–20℃ to +55℃
Packing List
BY-XM6 RX Receiver×1
BY-XM6 TX Transmitter×1
USB-C Charging Cable×2
Lavalier Microphone×1
Mic Clip for Lavalier Microphone×1
Foam Windscreen for Lavalier Microphone×1
Fur Windshield for Built-in Microphone×1
3.5mm TRS to TRS Output Cable for Cameras×1
3.5mm TRS to TRRS Output Cable for Smartphones×1
