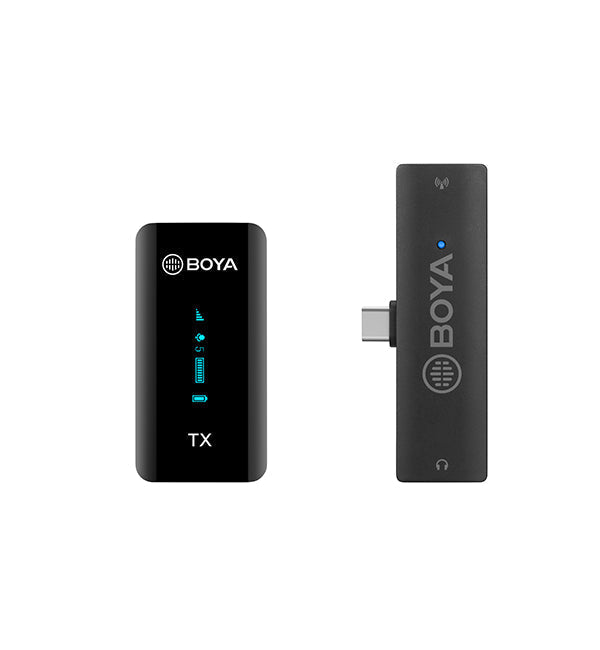

BY-XM6 S3
2.4GHz Dual-Channel Wireless Microphone System
₹15,620.00
- Dual-channel wireless microphone system that delivers high-quality sound
- Advanced 2.4GHz signal transmission technology delivers stable signals with a range of up to 100m without obstacles
- No extra APP or cables needed, the microphone can be connected automatically when powered on and plugged into the device
- Transmitters support up to 7h working time and build with an easy-to-read, vivid, and informative OLED display
- Receiver features Mono/Stereo output setting, headphone output and fits on the lightning port of iPhones and iPads
- Included with omnidirectional lavalier mics and other complete accessories, it’s a cost-effective choice
View full details
- Advanced 2.4GHz signal transmission technology delivers stable signals with a range of up to 100m without obstacles
- No extra APP or cables needed, the microphone can be connected automatically when powered on and plugged into the device
- Transmitters support up to 7h working time and build with an easy-to-read, vivid, and informative OLED display
- Receiver features Mono/Stereo output setting, headphone output and fits on the lightning port of iPhones and iPads
- Included with omnidirectional lavalier mics and other complete accessories, it’s a cost-effective choice
Transmitter
Transmission Type
2.4GHz Digital Frequency
Modulation
GFSK
Operating Range
Up to 328ft (100m) (without obstacle)
RF Output Power
＜10mW
Polar Pattern
Omnidirectional
Frequency Response
35Hz-18KHz
Maximum SPL
Built-in Microphone: 120dB SPL
Lavalier Microphone
110dB SPL
Sensitivity
Built-in Microphone:-39dB
Lavalier Microphone
-39dB
SNR
>84dB
Power Requirements
Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
Built-in Battery Life
Approx. 7 hours
Antenna
PIFA Antenna
Audio lnputs
3.5mm TRS MIC/LINE IN Jack or Built-in Microphone
Weight
Approx.32g(1.13oz)
Dimensions
62.1×31.6x16.5mm
Operating Temperature
-10℃ to 50℃
Storage Temperature
-20℃ to +55℃
Receiver
Transmission Type
2.4GHz ISM Frequency
Modulation
GFSK
Operating Range
Up to 328ft (100m)(without obstacle)
RF Output Power
<10mW
Audio Output Connector
3.5mm Headphone Jack / Lightning Connector
Power Requirements
Supplied by ios Devices
Antenna
PIFA
Weight
14.5g (0.51oz)
Dimensions
75.6x23.15x12mm

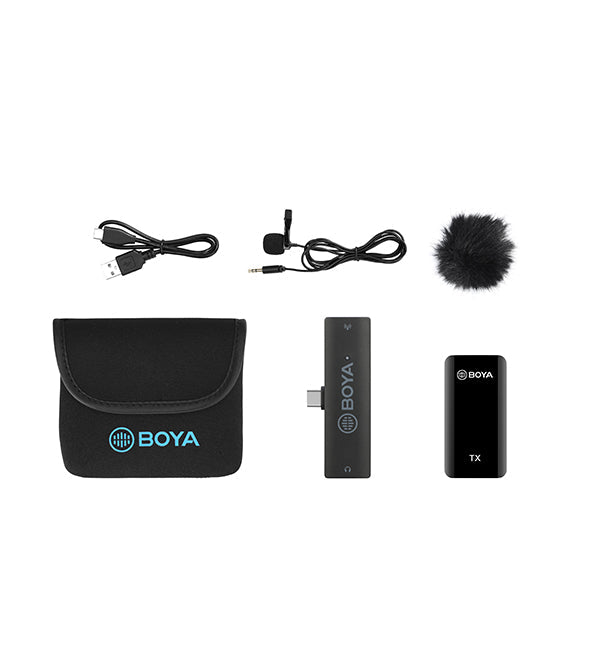

Packing List
BY-XM6 TX Transmitter×1
BY-XM6 RXD Receiver×1
USB-C Charging Cable×1
Lavalier Microphone×1
Mic Clip for Lavalier Microphone×1
Foam Windscreen for Lavalier Microphone×1

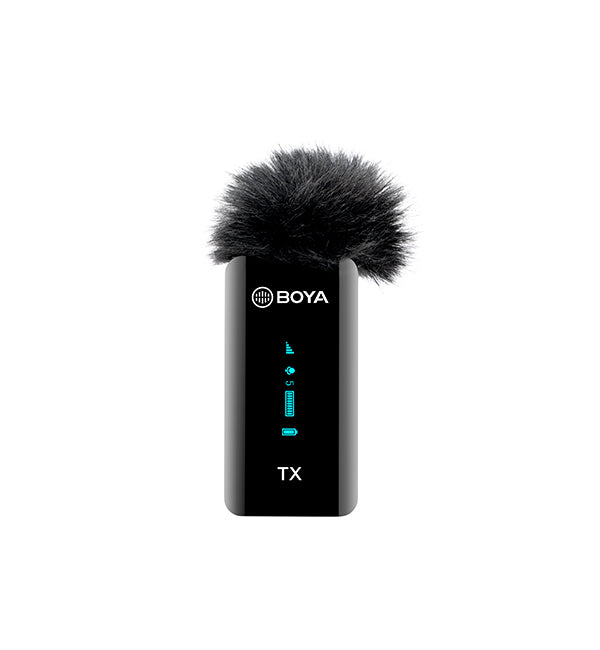

Fur Windshield for Built-in Microphone×1
