Transmitter
Transmission Type
2.4GHz Digital Frequency
Modulation
GFSK
Operating Range (without obstacle)
Up to 328ft (100m)
RF Output Power
<10mW
Polar Pattern
Omnidirectional
Frequency Response
50Hz-18KHz
Maximum SPL
Built-in Microphone: 120dB SPL
Lavalier Microphone
110dB SPL
Sensitivity
Built-in Microphone:-39dB / Lavalier Microphone:-39dB
SNR
> 84dB
Power Requirements
Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
Built-in Battery Life
Approx. 7 hours
Antenna
PIFA Antenna
Audio Inputs
3.5mm TRS MIC/LINE IN Jack or Built-in Microphone
Weight
Approx. 32g(1.13oz)
Dimensions
62.1×31.6×16.5mm
Operating Temperature
–10℃ to 50℃
Storage Temperature
–20℃ to +55℃
Receiver
Transmission Type
2.4GHz Digital Frequency
Modulation
GFSK
Operating Range (without obstacle)
Up to 328ft (100m)
Audio Output Connector
3.5mm Headphone Jack / 3.5mm TRS Output Jack
Audio Output Level
–60 dBV to -20dBV
Power Requirements
Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
Built-in Battery Life
Approx. 6.5 hours
Antenna
PIFA Antenna
Weight
Approx. 32g(1.13oz)
Dimensions
62.1×31.6×16.5mm
Operating Temperature
–10℃ to 50℃
Storage Temperature
–20℃ to +55℃

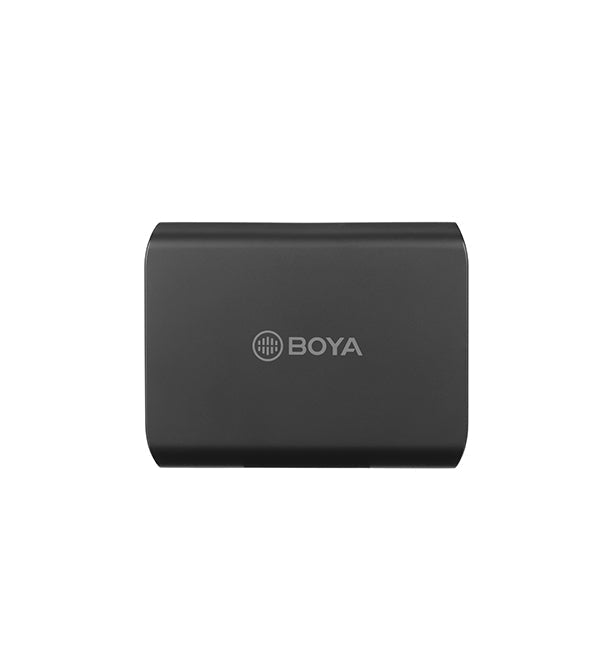

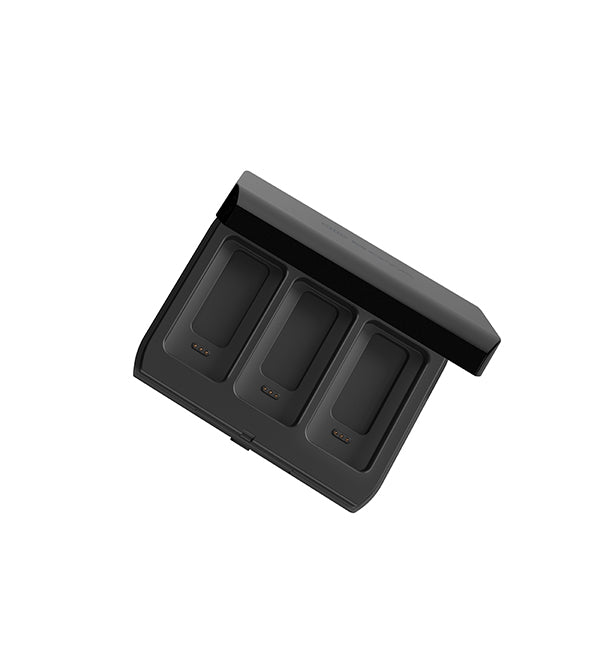

Charging case
Power Requirements
USB-C DC 5V/1.5A
Power Capacity
3000mAh
Box's Charging Time
4.5 hours
Weight
200g
Dimensions
125x96.8×35.6mm
Operating Temperature
-10℃ to 50℃
Storage Temperature
-20℃ to +55℃
Packing List
BY-XM6 TX Transmitter×2
BY-XM6 RX Receiver×1
USB-C Charging Cable×3
Lavalier Microphone×2
Mic Clip for Lavalier Microphone×2
Foam Windscreen for Lavalier Microphone×2
Fur Windshield for Built-in Microphone×2
3.5mm TRS to TRS Output Cable for Cameras×1
3.5mm TRS to TRRS Output Cable for Smartphones×1
Charging Case×1
